SERVICE FROM PFD TO 3D MODEL TO PRODUCT DELIVERY-CONSULT TODAY AT WHATSAPP +65 91275988

Fluid Trasfer
Skid Equipment+mONITORING

Total loading & unloading skid for tanker, truck and rail applications

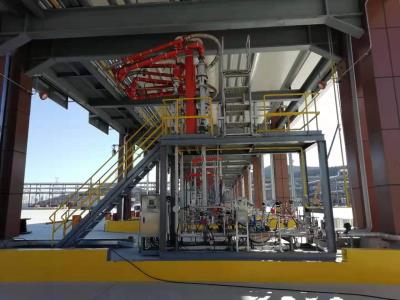

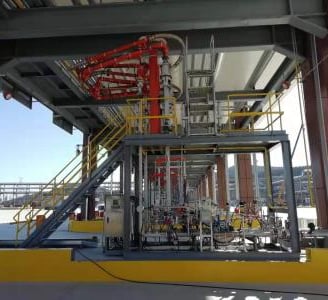

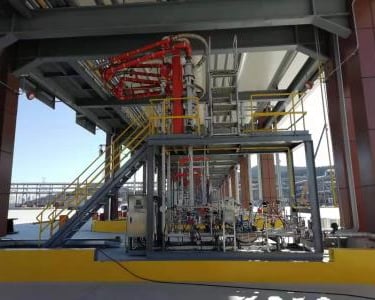

tRUCK tOP
sKID SYSTEM

  • Diesel & Gas Pipeline Truck & Railcar Loading & Blending Systems;

  • Fluid Blending and Metering Systems;

  • Custody Transfer Systems for Crude Oil, Bio Fuels, LPG, NGL;

  • Proving and Calibration of Metering Systems;

  • Control Automation Integration. Such as: PLC controls, Custom HMI, MCC integration;

  • Loading or Unloading of tanker trucks and railcars.

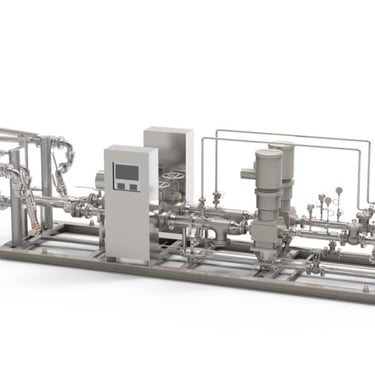

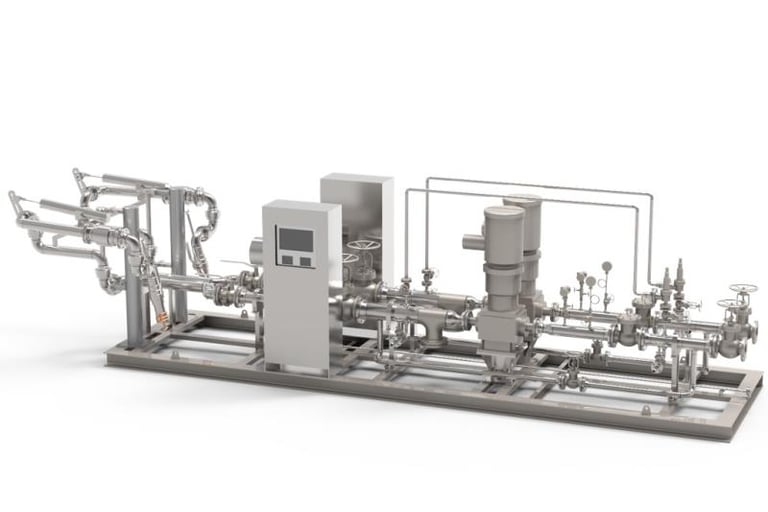

api BOTTOM LOADING
SKID SYSTEM

  • Static Ground Monitoring;

  • RTD with Thermo-well;

  • Pressure Indicator;

  • Pump/Compressor;

  • Integrated Automation Controls (Batch Controller/PLC / HMI);

  • Pressure safety/thermal relief valve;

  • Inlet and outlet shutoff valves;

  • In-line basket strainer;

  • Flow meter approved for custody transfer;

  • Double Block and Bleed Valve with Prover Connections;

  • Flow Control Valve;

  • X-Ray testing of welded pipe joints (percentage to meet code or customer specified);

  • Industrial quality powder coated piping and skid frame.

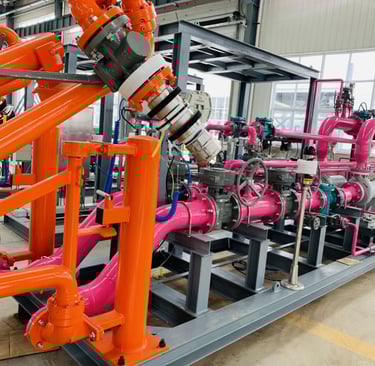

RAIL BOTTOM UNLOADING
SKID SYSTEM

  • Base frame with flat decking and containment lip;

  • Vapor recovery line;

  • Temperature transmitter with LCD;

  • Overflow protection level switch;

  • ESD Valve with actuator;

  • Differential pressure switch and transmitter for basket strainer;

  • Terminal operator HMI with network switch, wireless communications and printer;

  • Densitometer;

  • Pressure transmitter with LCD.

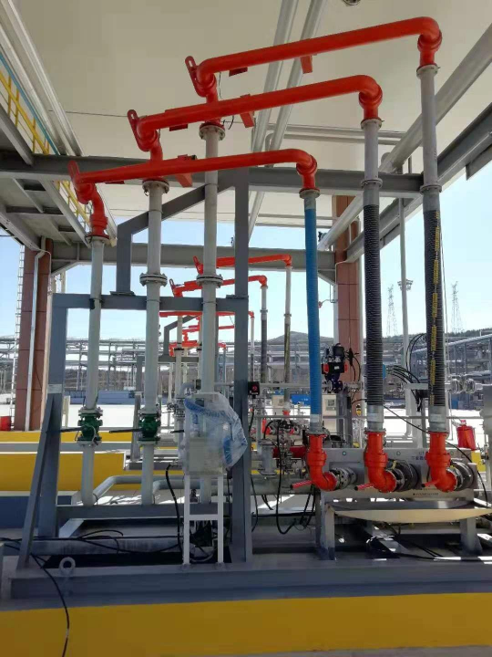

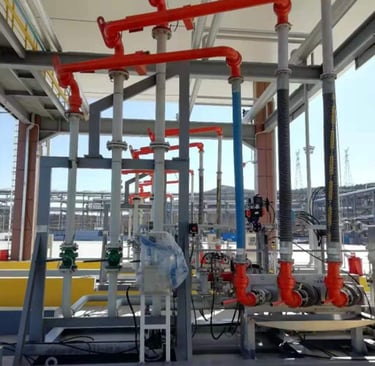

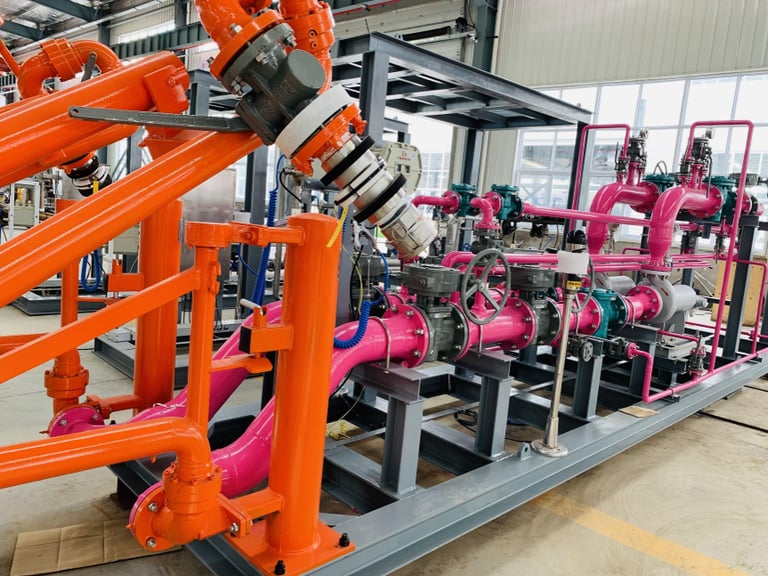

lpg/ngl Rloading/unloaing skid system

  • Loading Arm with Safety loading Gangway;

    Vapor recovery lines;

  • Overflow monitoring and level switch;

  • Densitometer;

  • Non-slip skid frame and plate decking coating;

  • Prover connections;

  • Double Block and Bleed (DB&B) valve;

  • Push button actuated ESD (emergency stop device) valve;

  • Pressure Transmitter with LCD Display;

  • Extended Equipment Warranties;

  • Start-up/Commissioning;

  • Temperature Transmitter with LCD Display.

“wE EMPOWER TANK TERMINAL OPERATION THROUGH INNOVATIONn”

Contacts

info@c2csingapore.com
+65 91275988

Associated product
bayreel
subscribe

Benefit of working with Skid Solutions:

  • Turnkey Systems and enjoy the convenience of a single point of contact.

  • Full service from PFD to P&ID to 3D model to final skid delivery.

  • Comprehensive In-House Expertise from advanced 2D and 3D CAD drawings to customised HMI programming.

  • Centralized Fabrication & International compliance testing facility in China.

  • Rigorous Quality Assurance and QAP & ITP pland & documentation with optional 3rd party inspections.

  • Detailed and completed Vendor Databook Documentation.

  • Enhanced Project Management Efficiency
